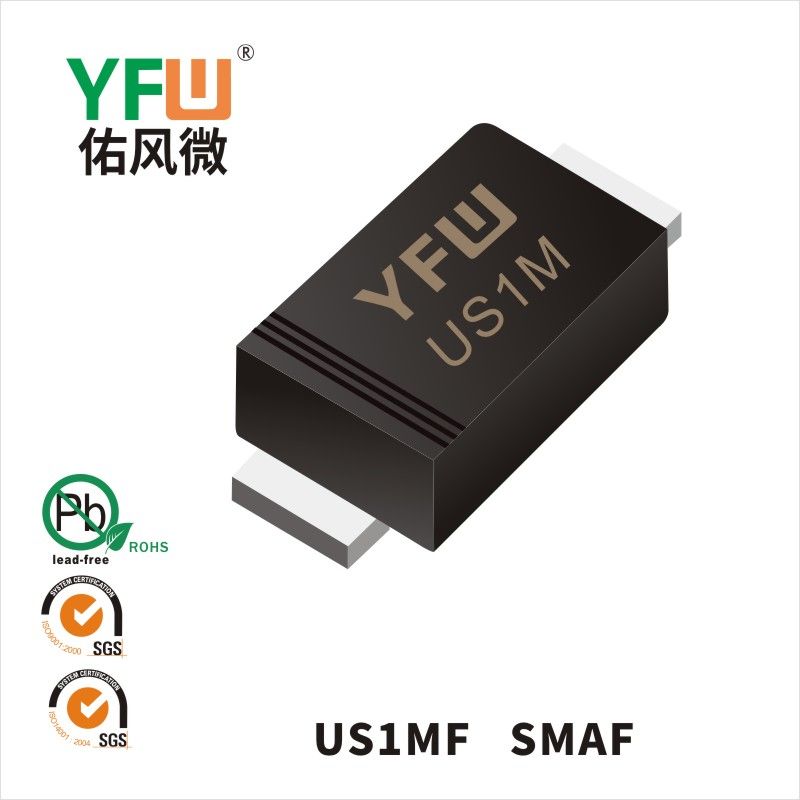

diode US1MF Specifications_Price_PDF sheet data-yfw diode Factory US1MF SMAF_(YFW diode)Brand
High Efficiency Rectifier Diode
| 1.0 Ampere / SMAF | ||||||||
| TYPE | I(AV) | VRRM | IFSM | VFM | I RM @ VRRM | trr | Pafckage Outline | |
| @IRM | VFM | I(AV) | TA=25℃ | |||||
| A | V | A | V | A | μA | |||
| US1DF | 1.0 | 200 | 30 | 0.95 | 1.0 | 5 | 50 | SMAF |
| US1GF | 1.0 | 400 | 30 | 1.25 | 1.0 | 5 | 50 | SMAF |
| US1MF | 1.0 | 1000 | 30 | 1.65 | 1.0 | 5 | 75 | SMAF |
| 2.0 Ampere / SMAF | ||||||||
| TYPE | I(AV) | VRRM | IFSM | VFM | I RM @ VRRM | trr | Pafckage Outline | |
| @IRM | VFM | I(AV) | TA=25℃ | |||||
| A | V | A | V | A | μA | |||
| US2DF | 2.0 | 200 | 50 | 0.95 | 2.0 | 5 | 50 | SMAF |
| US2GF | 2.0 | 400 | 50 | 1.25 | 2.0 | 5 | 50 | SMAF |
| US2MF | 2.0 | 1000 | 50 | 1.65 | 2.0 | 5 | 75 | SMAF |
| 3.0 Ampere / SMAF | ||||||||
| TYPE | I(AV) | VRRM | IFSM | VFM | I RM @ VRRM | trr | Pafckage Outline | |
| @IRM | VFM | I(AV) | TA=25℃ | |||||
| A | V | A | V | A | μA | |||
| US3DF | 3.0 | 200 | 100 | 0.95 | 3.0 | 5 | 50 | SMAF |
| US3GF | 3.0 | 400 | 100 | 1.25 | 3.0 | 5 | 50 | SMAF |
| US3MF | 3.0 | 1000 | 100 | 1.65 | 3.0 | 5 | 75 | SMAF |
